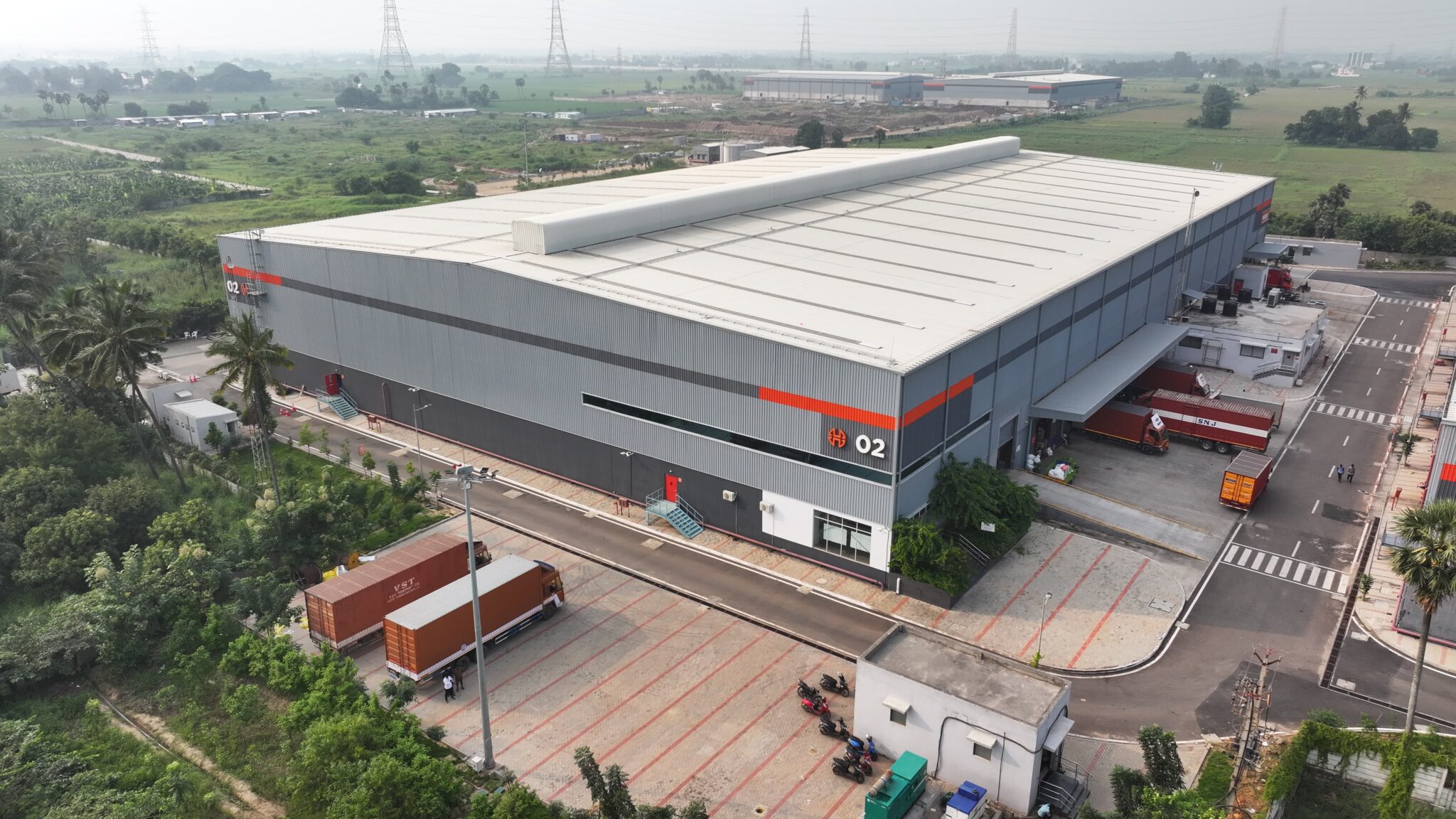

Chennai Facility Overview

IGBC Certified

Our warehouse in Chennai is proudly IGBC (Indian Green Building Council) certified, reflecting our commitment to sustainable and environmentally responsible operations. This certification not only ensures that our facility meets stringent standards for energy efficiency, water conservation, and waste management but also aligns with global best practices in green building.

Industrial & Warehousing

  • Warehouse Area 72,670 Sq.ft
  • Ancillary Areas 3753 Sq.ft
  • Ancillary Area includes office, Canteen, Rest room, Electrical room & Drivers Rest room.
  • Grade-A Warehouse
  • IGBC Certified



Amenities

Icon 1

Well-connected
Internal Roads & Aprons
Icon 2

Black-top and
Concrete Driveway
Icon 3

Storm Water Drains
Icon 4

Electrical Infrastructure
with DG backup
Icon 5

External Lighting
with LED
Icon 7

STP Tank & WTP
Icon 8

24X7 Park Level Security
Icon 9

Rain Water Recharging Pit
Icon 10

10% Green Space Area

Sustainability

Our commitment to sustainability in space solutions fosters comprehensive growth and provides a competitive edge. Our inclusive approach balances environmental protection with business functionality, reflecting a legacy of sustainable development and ethical practices.

Through features such as open green spaces, rainwater harvesting, solid waste management, solar power systems, and eco-friendly designs with ample sunlight and ventilation, our facility aims to replicate this positive impact through sustainable solutions.

SUSTAINABLE DESIGN

Environmentally friendly designs with ventilation and sunlight enhance robust structures, boosting productivity and employee morale.

FLOOD PROOF MECHANISM

Our facility in Chennai, features flood-proof mechanisms to ensure zero water logging and unrestricted movement during monsoons.

CURATED LANDSCAPE AND GREENERY

Wide open green spaces are designed to protect and promote the local ecosystem.

OPTIMUM RESOURCE UTILISATION

An IGBC-certified warehouse maximizes efficiency through sustainable resource management.




PARK DETAILS – FEATURES/SPECIFICATIONS

Warehouse Interior

  1. Sprinkler System
  2. Perimeter Height At Eaves
  3. Firefighting Systems
  4. Industrial Fm2 Flooring
  5. Fire Extinguishers

Civil Construction

Total 82 Nos of footing & Pedestal
FM2 Flooring with 11 ton per Square meter
Civil wall constructed till 3 meter height from flooring
3X3 Meter wide rolling shutter for RMS & Relocation

Pre Engineering Building

  • Building designed for Dead load, Live load, collateral load, Wind speed of 180Kmph, Seismic zone III as per IS Guideline.
  • Roof is made up of 0.5mm single roll sheet with XLPE Insulation on Bottom.
  • Wall panel is made up of 0.5mm profiled sheet with XLPE Insulation.
  • XLPE insulation has Good Fire resistance.
  • Louvers and ridge monitor for air circulation.
  • Designed for 6 air changes per hour.

Electrical System

  • Residual Current Circuit breaker used for all outgoing circuit for short circuit protection.
  • Armoured FRLS cables used for better protection.
  • LED light fixture for entire warehouse with lux level maintain between 90 to 110 for warehouse.
  • Earthing connected to all the racks all the levels.
  • Separate Electrical room.
  • Connected power 106KVA.
  • DG Backup incase of power failure.
  • UPS for CCTV & Servers.
  • Inverter for Emergency Light.

Fire protection System

  • Designed and installed as per Indian Standard.
  • Roof sprinkler & Internal hydrant Installed.
  • In-Rack sprinkler for all the rack levels 79 Deg with K 115 LPM.
  • Internal Hose reel provided every floors.
  • In-Rack sprinkler pipeline are grooved type no welding joints used inside warehouse.
  • Fire extinguisher provided at 15 meter distance.
  • External Hydrant all around the building.
  • Pump room with Electrical Drive pumps for hydrant & sprinkler system & Diesel Engine as standby.

Fire Alarm & PA system

  • FSP951-T Multisensor detector
    used which will detect smoke as
    well as heat.
  • Honeywell-Notifire Addressable
    fire alarm panel for monitoring
    which is located in security check
    point.
  • Public Address system
    installed inside warehouse for
    announcement.

Integration

  • Fire fighting system integrated
    to fire alarm system
  • Fire alarm system integrated
    to Access control & PA system.

Lift

  • 2 ton Goods Lift installed
    with travel speed of 1meter
    per second for G+4 floors.

CCTV System

  • NVR based CCTV Recording.
  • 5MP IP camera across the boundary & Inside warehouse & office area.
  • 90 Day’s Backup.
  • Connected to Crown network for remote monitoring.
  • Total 52 Cameras.

Racks

  • Multitier Shelving rack design and installed as per IS for earthquake resistant.
  • EN standard for steel static storage.
  • 66X22X45mm grating used for center passage to carry load of 900Kg/Sq.mt.
  • Racks are designed for Seismic Zone III.
  • Load acting on one upright is 9.5 ton per base plate.
  • Total Carton capacity in SCE 7,57,070 for Phase-1.
  • Racked capacity in SCE 275,000.
